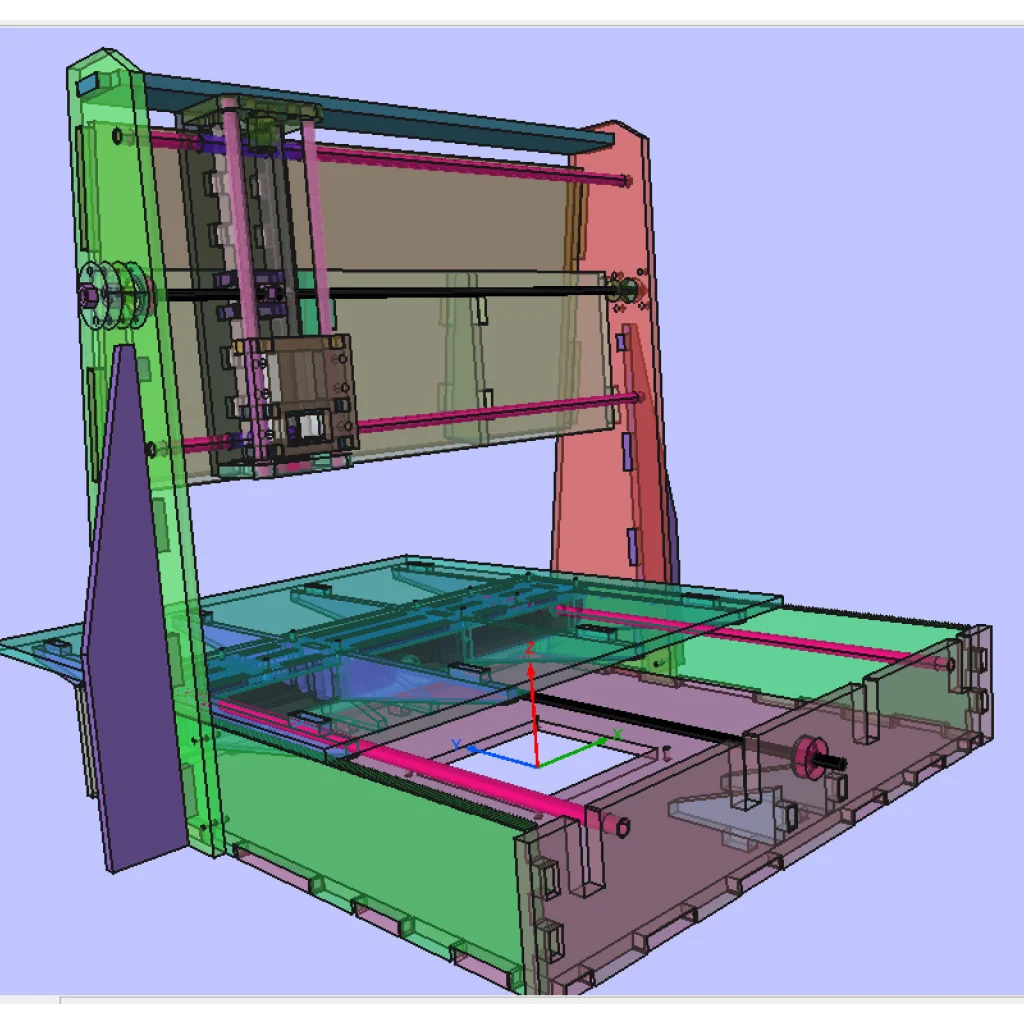

The cheapest option for a CNC router design is multifunctional and easy to assemble. Detailed assembly instructions with pictures + dxf files

Description

I created this design specifically for those who do not yet have any experience.

Anyone who wants to start working with CNC lasers, 3D printing, or 3D scanners does not yet know what they will be able to do, whether it will be difficult or easy, and therefore no one wants to risk their money buying expensive sets of parts.
The goal of this project is to create a high-quality CNC router for as little money as possible.
If the user enjoys working with CNC, they can develop their skills further. If not, the loss is not significant.

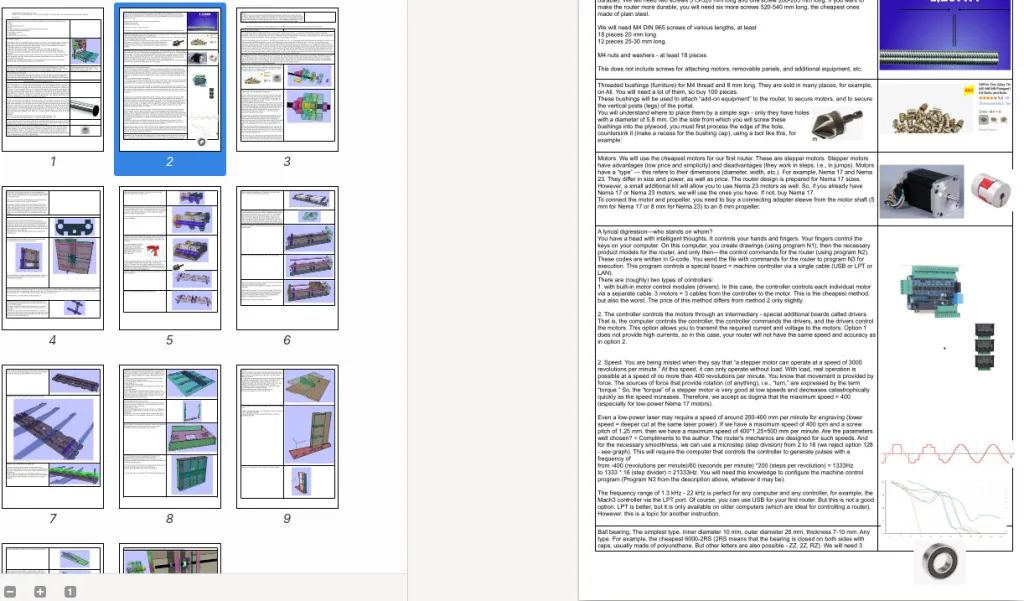

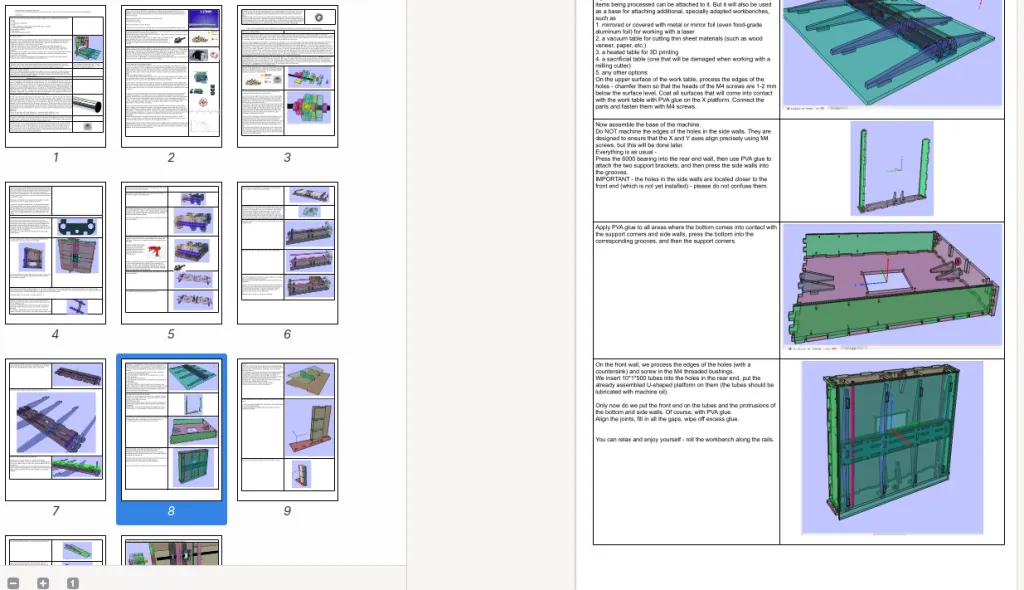

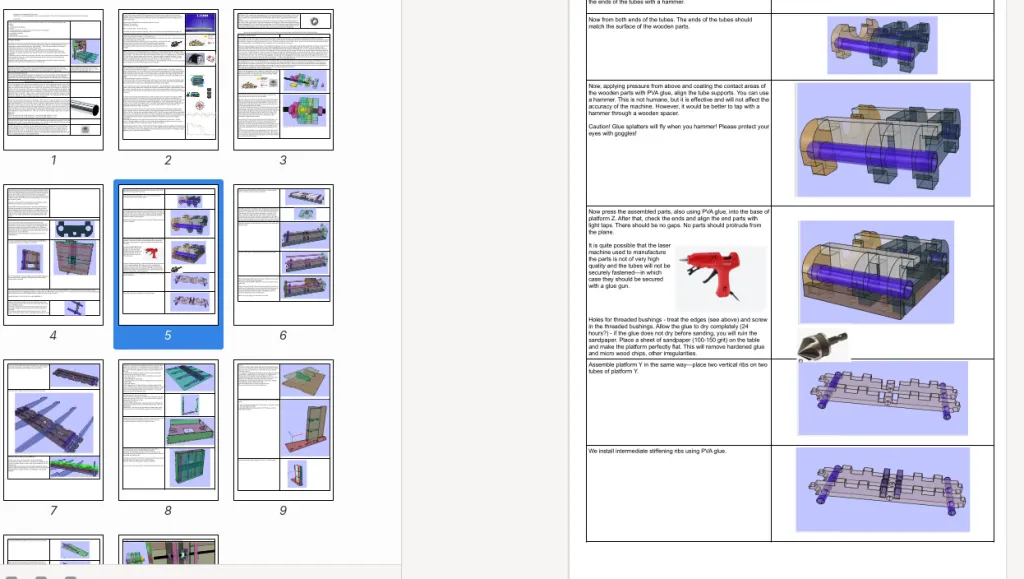

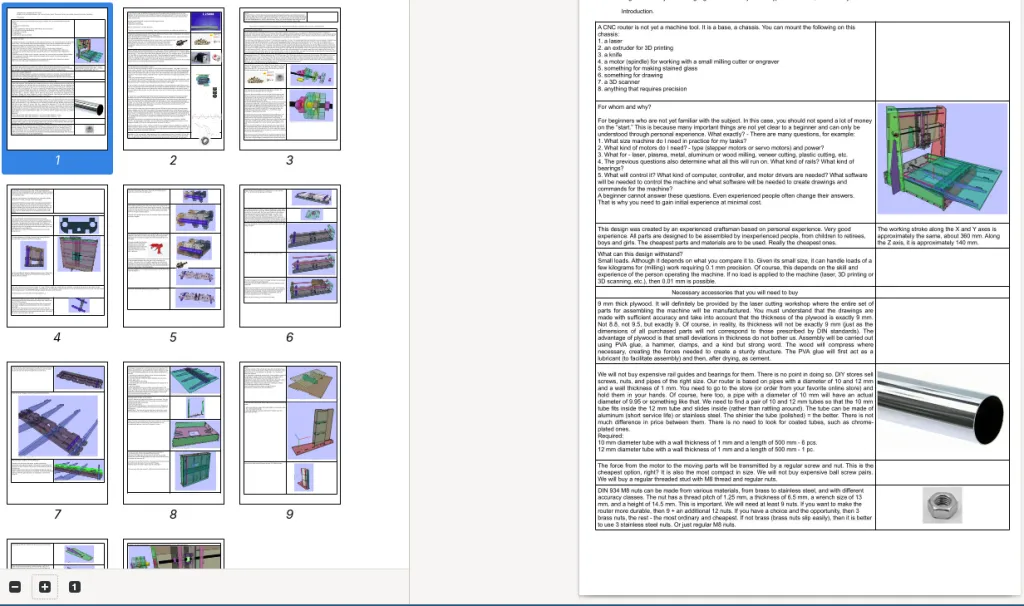

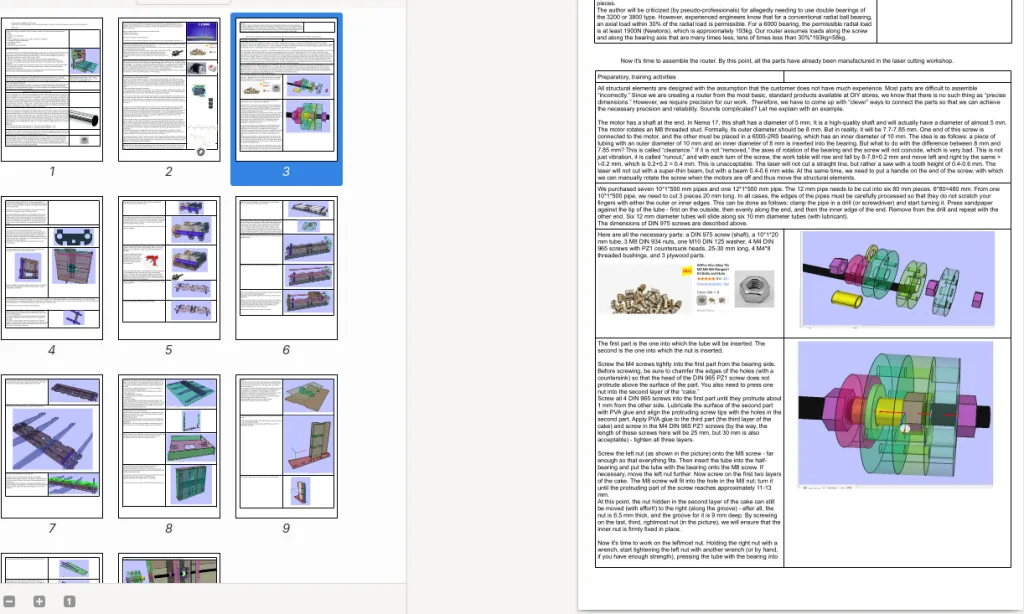

This design creates a full-fledged CNC router from parts that are sold in ordinary DIY stores. Detailed instructions showing all stages of assembly, as well as a few (very useful) words about the principles of CNC operation, will prevent the user from making mistakes.
Children and adults, retirees and novice specialists can handle the assembly.
This model is designed for development – it can be connected to and used with
1. a laser
2. a 3D printer
3. a 3D scanner

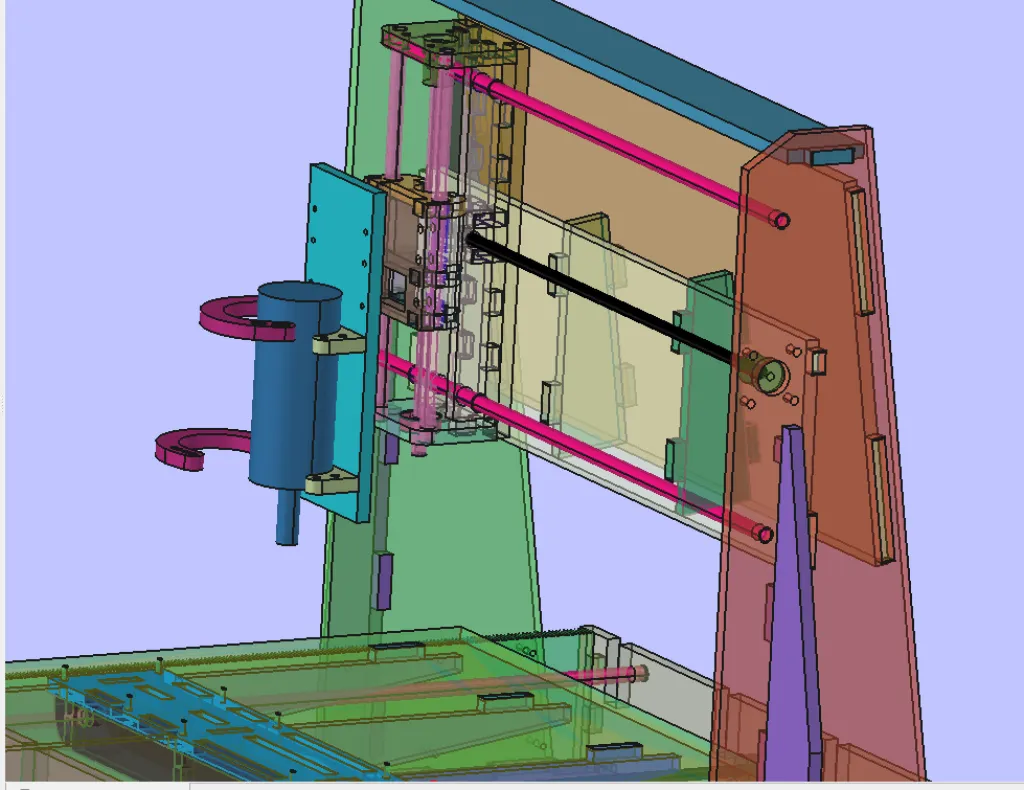

4. a milling spindle
5. an engraver
6. anything else

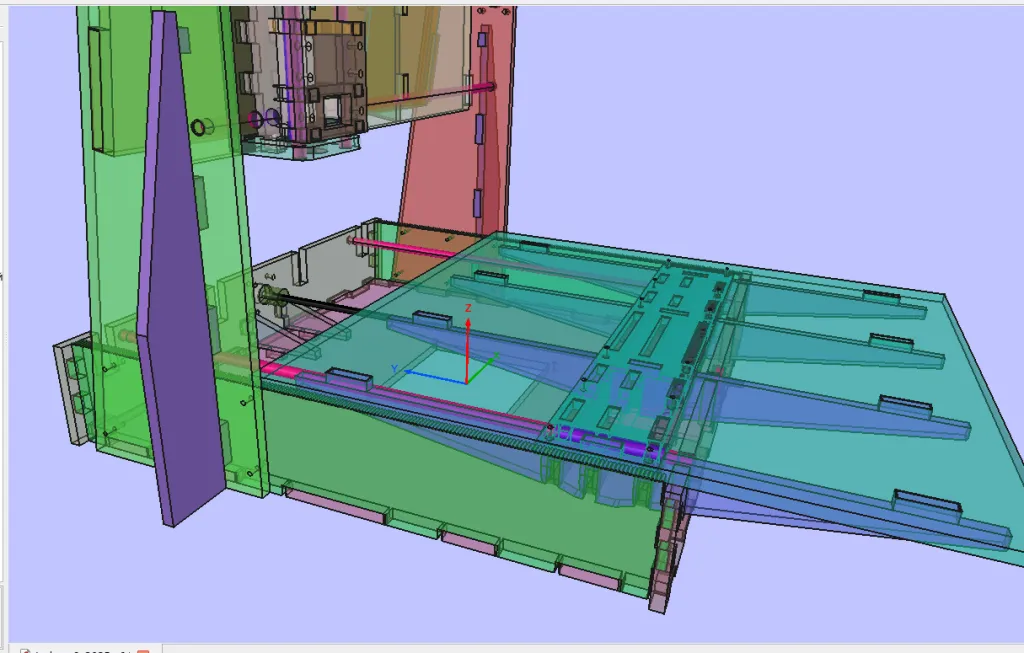

The ability to install additional work tables allows you to install easily manufactured
1. a sacrificial table for working with milling cutters
2. a mirror table for working with a mirror
3. a vacuum work table for working with thin materials such as wood veneer, etc.
4. anything else you can think of.

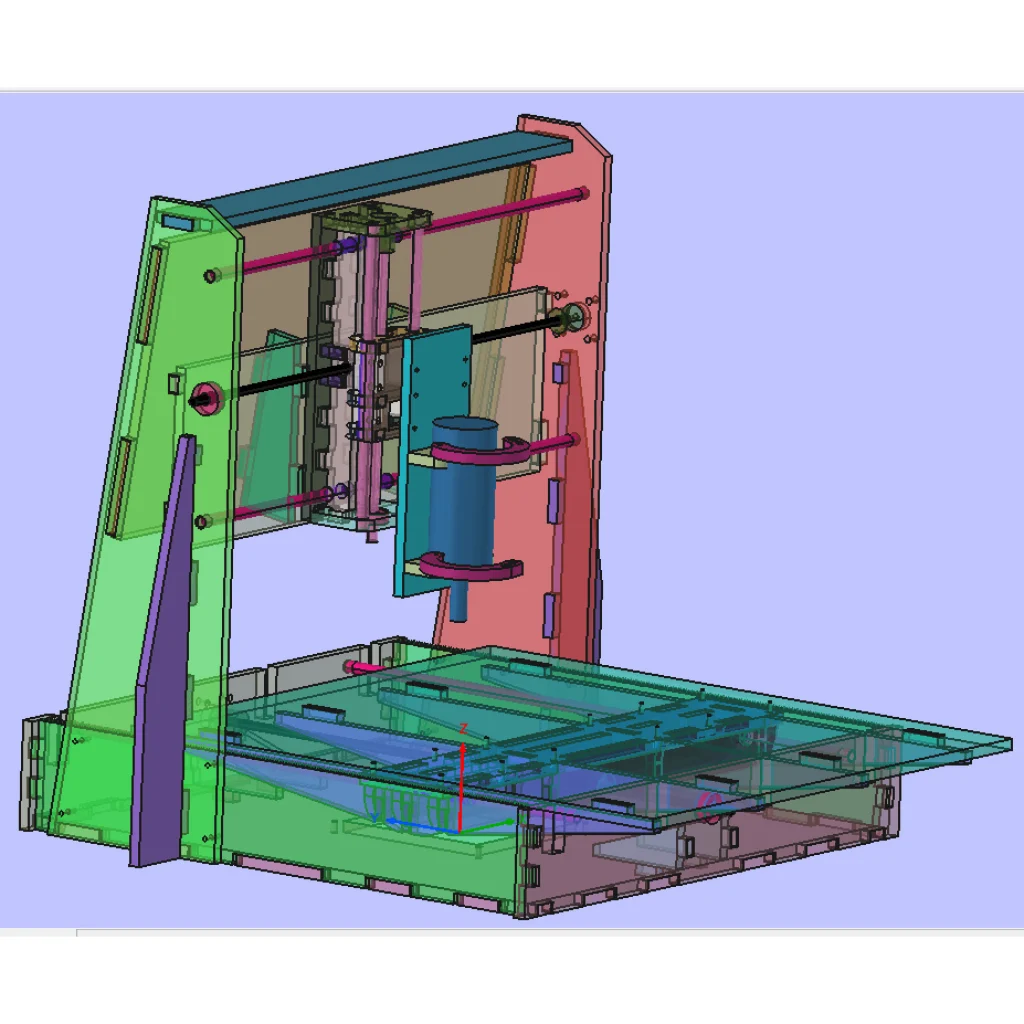

The working area of this model is approximately 360*360*145mm. All parts are manufactured at the laser cutting studio closest to your home.
9mm thick plywood, PVA glue, regular screws and nuts are used.

PLEASE NOTE:
– All files come in zipped folder.
– You are purchasing a digital product. No physical products will be sent to you.
– A basic knowledge of your software and of using above files with it is assumed.
– Due to the digital nature of the products, no refunds or exchanges will be given.
– When selecting a scale for cutting please consider the capabilities of your equipment. Consider your use before purchasing our files.
– All of our items are licensed for personal use only, with no right to sell physical items created using the files. The license is not transferable, it does NOT include the rights to sell, claim as your own, or redistribute the files. You can NOT upload them or elements from them on “print-on-demand” web sites.
– Please note that while our designs themselves are sold for commercial use, sometimes phrases and/or words can be trademarked for specific product types by outside companies.
